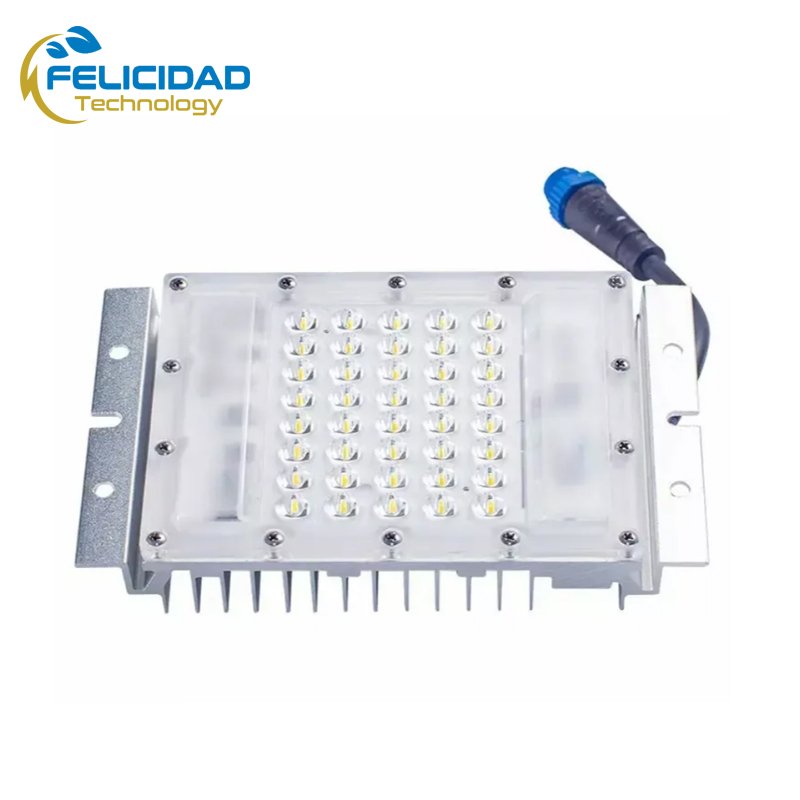

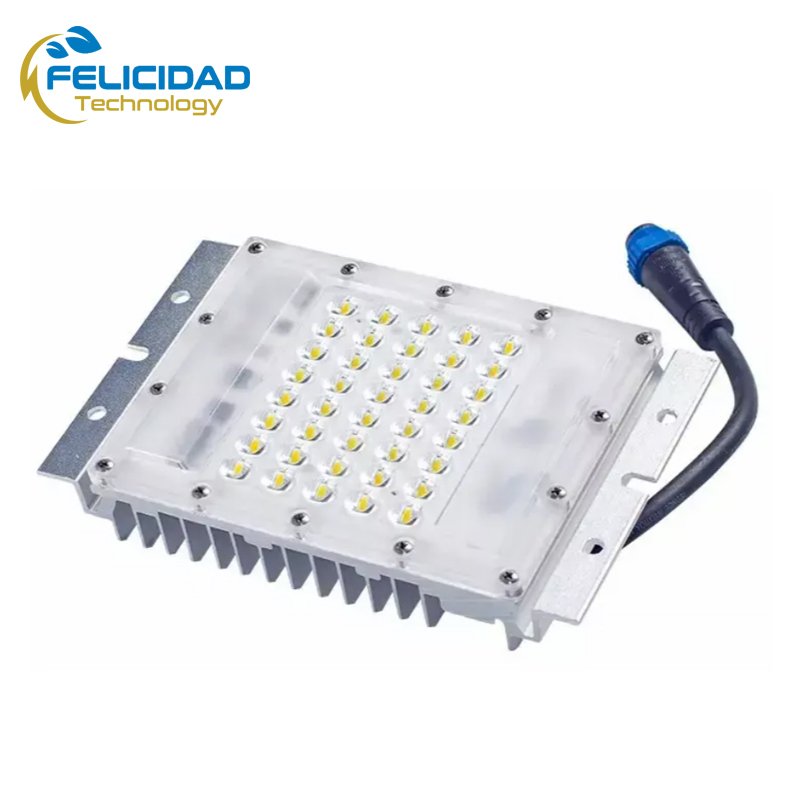

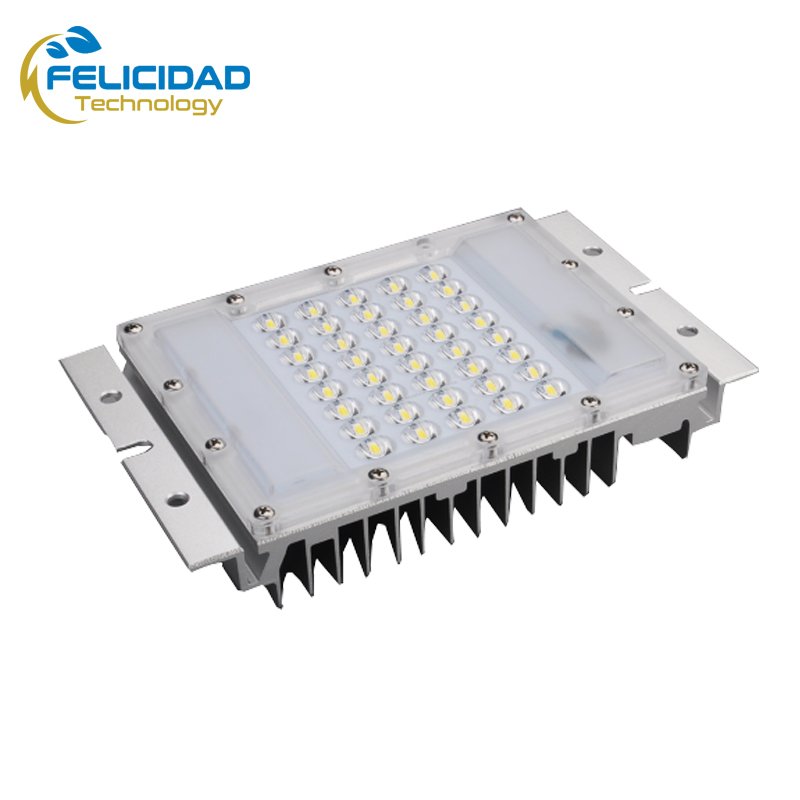

AC Input Square LED Module (20 W, 30 W, 40 W)
Introducing the Square AC Input Driverless (DOB) LED Module – the next generation of outdoor lighting innovation designed for garden lights, lanterns, and stylish outdoor fixtures. Powered by advanced Driver On Board (DOB) technology, this module offers simplicity, energy efficiency, and reliability, making it an ideal solution for both new installations and retrofitting existing lamps.
At the core of this module are 40 units of high-efficiency SMD3030 LEDs, providing 120 lm/W of bright, consistent illumination. Available in 20W, 30W, and 40W options, this LED module delivers flexible power choices to meet a wide range of lighting requirements. Whether you're lighting up pathways, enhancing landscape aesthetics, or upgrading street lamps, this LED light engine ensures superior performance and long-lasting durability.
The compact design of this square LED module, measuring 168x100x35mm, makes it easy to integrate into various fixtures. Its size and shape are particularly suited for decorative lighting solutions such as garden lights, lanterns, and other stylish outdoor lamps, where space efficiency is critical.
One of the standout features of this module is its AC input driverless technology, which eliminates the need for external AC-DC LED drivers. This DOB LED module directly connects to AC power, simplifying installation and reducing the cost and maintenance typically associated with traditional LED drivers. It’s a smart, cost-effective solution that saves both time and resources.

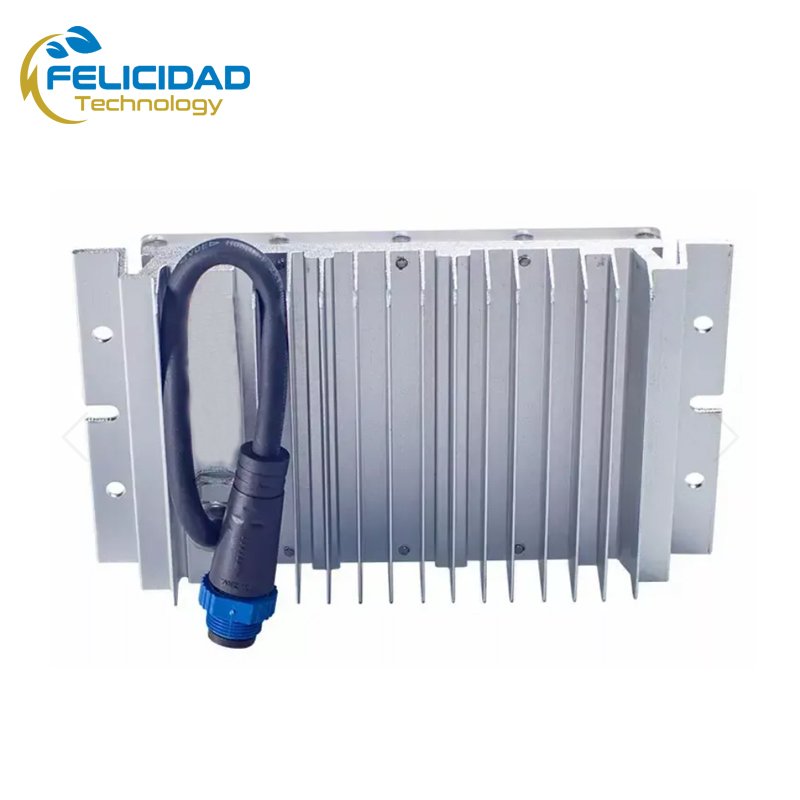

Designed for the outdoors, the IP68-rated waterproof housing ensures that the module performs reliably even in harsh weather conditions. Whether it's rain, dust, or extreme temperatures, this module is built to withstand it all. The inclusion of the M15 waterproof connector further guarantees a secure and safe connection for outdoor use, enhancing the longevity and safety of the module.
Installation is made effortless thanks to the tool-free connection system, which allows for fast and easy setup. The open cable design eliminates the need for a female waterproof connector on the other end, offering greater versatility for various outdoor lighting configurations.
Moreover, we offer OEM & ODM services, allowing for customization of cables, connectors, and other features to meet the unique specifications of your project. This LED light engine is perfect for businesses looking to upgrade their outdoor lighting infrastructure with a modern, efficient, and reliable solution.
Specifications:
| Materials: |
Aluminum alloy + PC |
| Output Power Wattage: |
20W to 40W max. |
| Input Voltage Range: |
AC 110V to 130V (110V 120V), OR AC 180V to 240V (220V 230V) |
| Light Source: |
SMD 3030 |
| Quantity of LEDs: |
40 units |
| Luminous Efficiency: |
120lm/W @ 40W (ever higher at lower wattage) |
| Luminous Flux: |
Up to 4,800 lumens |
| IP Class: |
IP67/ IP68 |
| Color Temperature: |
2700K/ 3000K/ 4000K/ 5000K/ 5700K/ 6500K optional |
| Color Rendering Index (Ra): |
≥70, ≥80, or ≥90 |
| Beam Angles (Lighting Distribution): |
Horizontal 80°*150°/ Horizontal 75°*145°/ 90°/ 60° |
| Applications: |
Street Lighting/ Flood Lighting/ Tunnel Lighting/ High Bay or Low Bay Lighting/ Sports Lighting/ Garden Lamps |
| Warranty: |
2 years |
| Dimensions: |
168 x 100 x 35mm |
| Net Weight: |
480g ± 10g |
| Packing: |
1pc per inner box, 24 or 25 boxes per carton (24 or 25pcs per carton) |
| Carton Size & G.W.: |
65 x 38 x 19 cm, 13.5kgs |
| HS Code: |
9405429000 |
Explanation About Our LED Module Model Numbers:
| ** |
** |
* |
*** |
** |
* |
* |
* |
* |
| Heat Sink Spec. |
LED Qty. |
Lens Type |
Lighting Distribution |
Color Temperature |
LEDs' Type |
LEDs' Brand or Bin |
Color Rendering Index (Ra) |
Cable Spec. |
| GS: 298 x 70 x 48mm; |
|
|
|
18: 1800K; |
|
|
|
|
| GH: 298 x 70 x 40mm; |
128 |
|
HL2: Horizontal 70° x 145°; |
22: 2200K; |
2: 2525; |
F: FH; |
|
|
| GP: 300 x 70 x 31mm; |
96 |
|
SL2: Vertical 70° x 145°; |
|
3: 3030; |
2: 24-J2; |
|
|
| GD: 275 x 70 x 40mm; |
72 |
L: Srew Type; |
HL3: Horizontal 80° x 150°; |
24: 2400K; |
|
|
|
|
| GJ: 300 x 70 x 35mm; |
64 |
|
SL3: Vertical 80° x 150°; |
|
5: 5050; |
0: 02-J2; |
|
|
| SH: 250 x 70 x 50mm; |
63 |
|
|
|
|
|
|
|
| JD: 168 x 130 x 26mm; |
60 |
K: One-piece Clip Design; |
HS9: Horizontal 90° x 120°; |
27: 2700K; |
6: 3535; |
1: 18-J2; |
|
|
| JX: 168 x 100 x 26mm; |
56 |
|
HS1: Horizontal 90° x 110°; |
30: 3000K; |
|
|
7: >70; |
C: CSA M15; |
| JS: 100 x 84 x 26mm; |
54 |
F: Split Clip Design; |
HG4: Horizontal 45° x 135°; |
35: 3500K; |
R: 5050RGB; |
Y: Refond; |
|
|
| YL10W: φ76 x 70mm; |
48 |
|
QC3: Sports 35° x 125°; |
|
|
P: Philips; |
8: >80; |
M: M18; |
| YL20W: φ100 x 62mm; |
42 |
G: Glass Lens; |
HLM: Horizontal 70° x 150°; |
40: 4000K; |
G: 3030RGB; |
|
|
|
| YL30W: φ100 x 70mm; |
40 |
|
OT3: Flood 30°; |
|
|
|
9: >90; |
L: Open Cable or Customized Length |
| |
36 |
|
|
|
|
|
|
|
| |
32 |
|
|
|
|
|
|
|
| YL60W: φ136 x 75mm; |
30 |
W: Universal Combination Lens |
OT6: Flood 60°; |
50: 5000K; |
W: 3030RGBW; |
S: SAMSUNG; |
|
|
| |
28 |
|
|
|
|
|
|
|
| |
18 |
|
OT9: Flood 90°; |
|
|
C: CREE; |
|
|
| |
15 |
|
O25: Flood 25°; |
57: 5700K; |
U: UV; |
|
|
|
| |
14 |
|
T2M: T2M |
|
|
|
|
|
| |
12 |
|
|
60: 6000K;
65: 6500K |
P: Plant Lighting |
R: bridgelux;
J: Jingrui |
|
|
For example:
Model NO.
GH30KHL3-305Y7-C
It means:
GH: Heat sink is 298 x 70 x 40mm;
30: There are total 30 units of LEDs;
K: Lens type is one-piece clip design;
HL3: Beam angle is horizontal 80° x 150°;
30: CCT is 3000K;
5: LEDs' type is SMD5050;
Y: Brand of LEDs is Refond;
7: CRI > 70;
-C: With standard M15 waterproof connector.
