Descriptions:

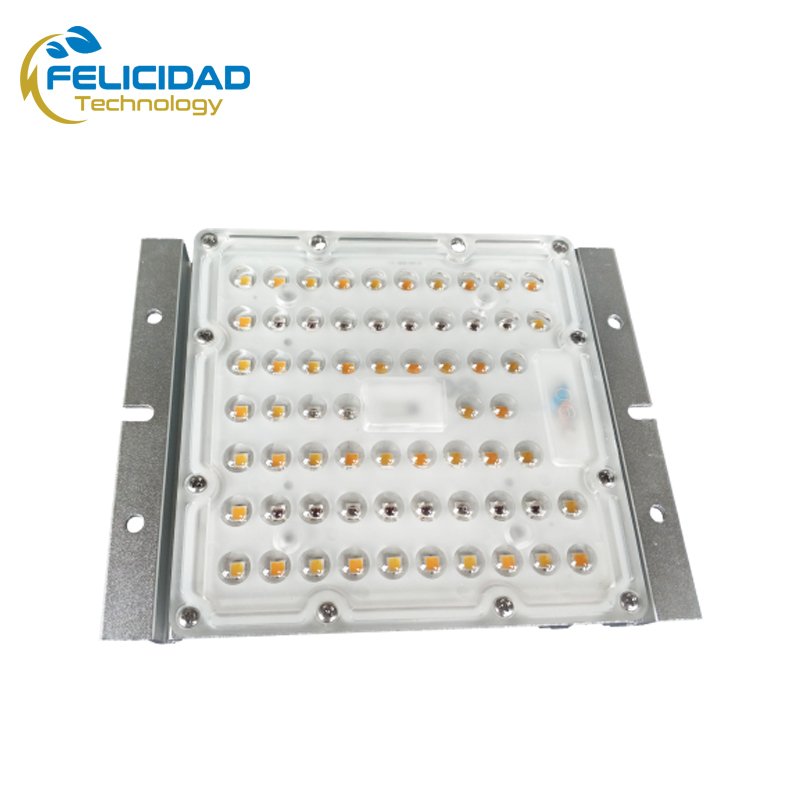

The DC Input 60W Square LED Grow Light Module is a cutting-edge lighting solution designed specifically for horticultural and agricultural environments. Tailored for sustainable farming, this module offers customizable input voltages of 12V, 24V, 30V, 36V, or 48V, making it ideal for integration into solar-powered systems. With a high luminous efficiency of up to 120 lm/W, this module is built to maximize energy use, ensuring that plants receive the optimal light needed for growth and development. The carefully calibrated light spectrum, including Deep Red (DR), Far Red (FR), and Royal Blue (RB) LEDs, promotes photosynthesis, enhancing the growth cycle for a variety of plants. Additionally, the robust IP68 waterproof rating allows the module to function effectively in outdoor environments or greenhouses, making it a versatile choice for both indoor and outdoor agricultural applications.
This product is the ideal choice for farmers and growers who are looking to minimize energy costs, especially those utilizing off-grid or renewable energy sources. The compact design, high performance, and durability make this grow light module the ultimate choice for modern agricultural systems that prioritize sustainability and efficiency.
Specifications:
| Materials: |
Aluminum alloy + PC |
| Output Power Wattage: |
20W to 60W max. |
| Input Voltage Range: |
DC 42-50V (48V) default, other DC 12V, 24V, 30V, 36V, 42V, 54V etc. can be customized |
| Input Current: |
400mA to 1200mA max. |
| Light Source: |
SMD 3030/ 2835/ 3535 + DR/FR/RB RGB LED grow light LEDs |
| Quantity of LEDs: |
30 units |
| Luminous Efficiency: |
120lm/W @ 60W (ever higher at lower wattage) |
| Luminous Flux: |
Up to 7,200 lumens |
| IP Class: |
IP68 |
| Color Temperature: |
2700K/ 3000K/ 4000K/ 5000K/ 5700K/ 6500K optional |
| Beam Angles (Lighting Distribution): |
Horizontal 80°*150°/ 90°/ 60° |
| Applications: |
LED Grow Lights/ Vertical Farming/ Horticultural Lighting/ Garden Lamps etc. |
| Warranty: |
5 years; 3 years |
| Dimensions: |
168 x 130 x 35mm |
| Net Weight: |
570g ± 10g |

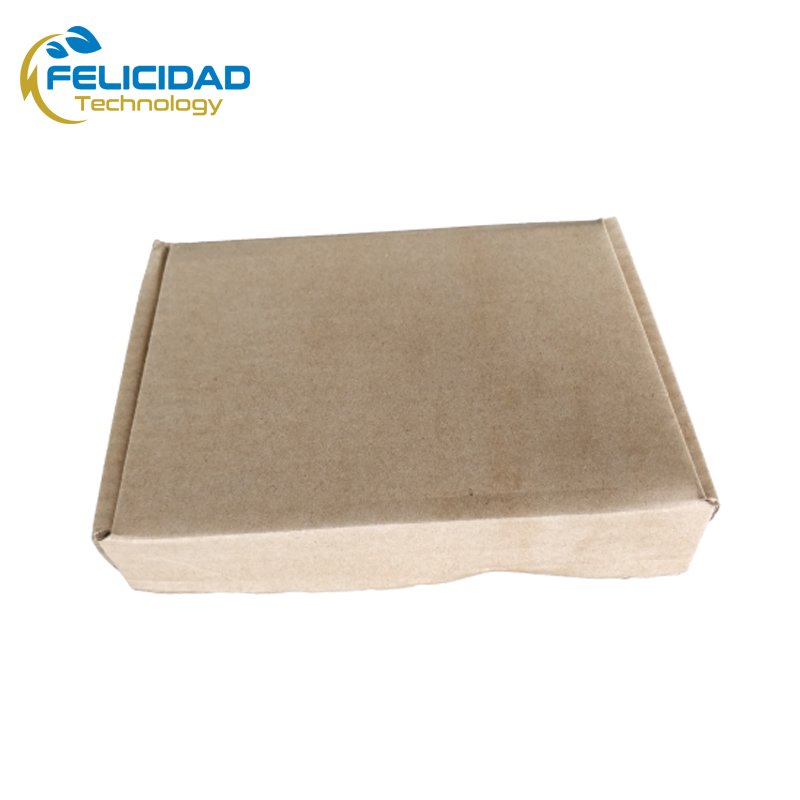

| Packing: |
1pc per inner box, 24 or 25 boxes per carton (24 or 25pcs per carton) |
| Carton Size & G.W.: |
65 x 38 x 19 cm, 17.5kgs |
| HS Code: |
9405429000 |
Advantages:
- Solar Power Compatible: This module's ability to integrate seamlessly with solar systems makes it perfect for off-grid and eco-friendly agricultural operations.
- Enhanced Crop Yield: The customizable spectrum ensures optimal lighting for a wide variety of crops, leading to healthier and faster growth.
- Energy Efficiency: The high luminous efficiency ensures significant energy savings, contributing to lower operational costs for farmers.
- Durability in Tough Environments: The IP68 rating ensures protection against water, dust, and harsh weather conditions, making it a reliable choice for both indoor and outdoor farming.
- Low Maintenance: With a lifespan of over 50,000 hours, this module offers long-lasting performance, minimizing downtime and the need for replacements.
- Easy Installation: The compact design and flexible connector options allow for easy and quick setup, reducing labor costs.
Applications:
- Indoor Vertical Farming: Perfect for growing plants in controlled environments with limited space.
- Greenhouse Lighting: Provides optimal lighting for year-round crop production in greenhouses.
- Solar-Powered Agriculture: Ideal for farms utilizing renewable energy sources such as solar panels.
- Commercial and Industrial Farming: Scalable for use in large farming operations where efficiency and durability are critical.
- Horticultural Research: Tailored lighting solutions make it ideal for research institutions focusing on plant growth optimization.
Explanation About Our LED Module Model Numbers:
| ** |
** |
* |
*** |
** |
* |
* |
* |
* |
| Heat Sink Spec. |
LED Qty. |
Lens Type |
Lighting Distribution |
Color Temperature |
LEDs' Type |
LEDs' Brand or Bin |
Color Rendering Index (Ra) |
Cable Spec. |
| GS: 298 x 70 x 48mm;
GH: 298 x 70 x 40mm;
GP: 300 x 70 x 31mm;
GD: 275 x 70 x 40mm;
GJ: 300 x 70 x 35mm;
SH: 250 x 70 x 50mm;
JD: 168 x 130 x 26mm;
JX: 168 x 100 x 26mm;
JS: 100 x 84 x 26mm;
YL10W: φ76 x 70mm;
YL20W: φ100 x 62mm;
YL30W: φ100 x 70mm;
YL60W: φ136 x 75mm;
|
128
96
72
64
63
60
56
54
48
42
40
36
32
30
28
18
15
14
12 |
L: Srew Type;
K: One-piece Clip Design;
F: Split Clip Design;
G: Glass Lens;
W: Universal Combination Lens |
HL2: Horizontal 70° x 145°;
SL2: Vertical 70° x 145°;
HL3: Horizontal 80° x 150°;
SL3: Vertical 80° x 150°;
HS9: Horizontal 90° x 120°;
HS1: Horizontal 90° x 110°;
HG4: Horizontal 45° x 135°;
QC3: Sports 35° x 125°;
HLM: Horizontal 70° x 150°;
OT3: Flood 30°;
OT6: Flood 60°;
OT9: Flood 90°;
O25: Flood 25°;
T2M: T2M |
18: 1800K;
22: 2200K;
24: 2400K;
27: 2700K;
30: 3000K;
35: 3500K;
40: 4000K;
50: 5000K;
57: 5700K;
60: 6000K;
65: 6500K
|
2: 2525;
3: 3030;
5: 5050;
6: 3535;
R: 5050RGB;
G: 3030RGB;
W: 3030RGBW;
U: UV;
P: Plant Lighting |
F: FH;
2: 24-J2;
0: 02-J2;
1: 18-J2;
Y: Refond;
P: Philips;
S: SAMSUNG;
C: CREE;
R: bridgelux;
J: Jingrui |
7: >70;
8: >80;
9: >90; |
C: CSA M15;
M: M18;
L: Open Cable or Customized Length |
For example:
Model NO.
GH30KHL3-305Y7-C
It means:
GH: Heat sink is 298 x 70 x 40mm;
30: There are total 30 units of LEDs;
K: Lens type is one-piece clip design;
HL3: Beam angle is horizontal 80° x 150°;
30: CCT is 3000K;
5: LEDs' type is SMD5050;
Y: Brand of LEDs is Refond;
7: CRI > 70;
-C: With standard M15 waterproof connector.
