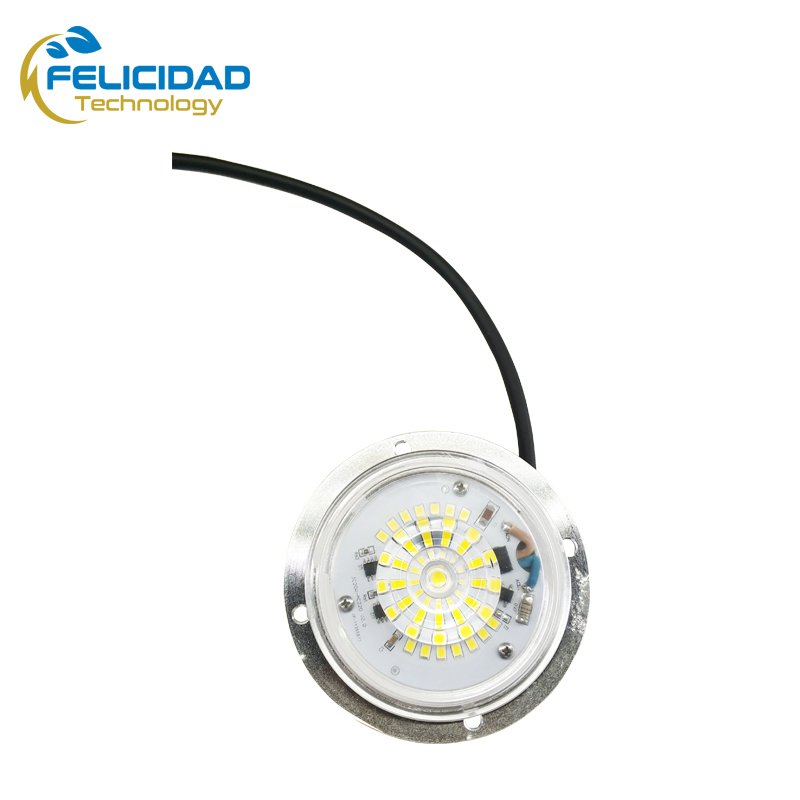

Front view of the 20-30W AC input round LED module, showcasing the Fresnel lens integrated into the module for enhanced light distribution.

Angular view of the 20-30W LED module showing its compact size and sleek design for versatile applications.

Back view of the 20-30W round LED module showing pre-drilled mounting holes for easy installation.

Bottom view of the 20-30W round LED module focusing on the AC input connection points for easy wiring.

Send Us Inquiry For The Detailed Data Sheet

JCYLAC20W/30W-**-* 20 W 30 W AC Input DOB (Driver On Board) Driverless Round LED Module with Fresnel Lens

Features:

1. Power Options:

Available in 20W and 30W power variants to suit diverse lighting needs.

2. Voltage Input:

AC 110V-130V or AC 180V-240V (220V/230V) driverless design, allowing direct connection to AC mains without an external driver, reducing system complexity.

3. Driverless DOB (Direct On Board) Technology:

Innovative DOB (Direct On Board) driverless design ensures high reliability, cost-effectiveness, and a compact build by eliminating the need for traditional external drivers. This reduces material costs, improves installation ease, and enhances lifespan.

4. Round LED Module:

The module features a round design optimized for even light distribution, providing enhanced illumination in all directions and is perfect for both indoor and outdoor applications like downlights, high bay lights, and streetlights.

5. Integrated Fresnel Lens:

Equipped with a Fresnel lens, which improves light focusing by directing light more efficiently and reducing light scattering. The concentric rings within the lens ensure that light intensity remains even and sharp across different angles.

6. AC Input Compatibility:

The module accepts a wide range of input voltages (from 110V to 240V AC), making it versatile for international markets and regions with different electrical standards. This also supports easier replacement in existing fixtures, making it a flexible retrofit solution.

7. High Brightness and Energy Efficiency:

With extra high efficiency LED chips delivering superior brightness (up to 200 lm/W for the 30W version), this module offers significant energy savings compared to traditional lighting, resulting in lower electricity bills and reduced environmental impact.

8. Superior Heat Dissipation:

Built with an aluminum heat sink for excellent thermal management, ensuring long lifespan and consistent performance. The heat dissipation system ensures optimal operation even in high-temperature environments, significantly extending the lifespan of the LEDs.

9. Easy Installation:

The module design allows for simple integration into various lighting fixtures. Pre-drilled mounting holes and a universal AC input mean faster, easier installation without needing complex wiring or additional components.

Descriptions:

This 20W/30W AC Driverless DOB Round LED Module with Fresnel lens is the latest innovation in LED lighting technology. Designed for versatility and energy efficiency, it operates on AC 110V-130V or AC 180V-240V (220V/230V) input, making it ideal for global markets. Featuring driverless DOB technology, it eliminates the need for external drivers, reducing costs and installation complexity. The integrated Fresnel lens optimizes light direction for a focused, uniform beam with minimal scattering, while the round design ensures even light distribution. With high luminous efficiency of up to 200 lm/W, this LED module offers exceptional brightness while minimizing energy consumption. Its durable aluminum heat sink guarantees excellent thermal management, extending the module's lifespan. Suitable for indoor and outdoor lighting applications, including downlights, high bay lights, streetlights, and more, this module is a cost-effective and eco-friendly solution for residential, commercial, and industrial lighting projects.

Specifications:

Materials:	Aluminum alloy + PC
Output Power Wattage:	20W, 30W optional
Input Voltage Range:	AC 110V to 130V (110V 120V), OR AC 180V to 240V (220V 230V)
Light Source:	SMD 3030 (+ SMD 2835)
Quantity of LEDs:	20 units / 30 units
Luminous Efficiency:	120lm/W @ 30W (ever higher at lower wattage)
Luminous Flux:	Up to 3,600 lumens
IP Class:	IP67 OR IP68
Color Temperature:	2700K/ 3000K/ 4000K/ 5000K/ 5700K/ 6500K optional
Color Rendering Index (Ra):	≥70, ≥80, OR ≥90
Beam Angles (Lighting Distribution):	Fresnel lens (120°, 45°)
Applications:	Street Lighting/ Solar Lighting/ Downlights/ High Bay or Low Bay Lighting/ Garden Lamps/ Spot Lighting/ Other
Warranty:	2 years
Dimensions:	φ100 x (61.5/ 69.5)mm
Net Weight:	240g ± 10g
Packing:	12pcs per layer, 3 layers per carton (36pcs per carton)
Carton Size & G.W.:	46 x 45 x 25 cm, 9.7kgs
HS Code:	9405429000

Features and Advantages:

Driverless AC Input: Eliminates the need for an external driver, reducing costs and increasing reliability.
Round Module Design: Uniform light output ideal for a wide range of applications.
Integrated Fresnel Lens: Enhanced light focusing for sharper illumination and reduced glare.
High Efficiency: Energy savings of up to 200 lm/W.
Wide Input Voltage Range: Compatible with both 110V-130V and 180V-240V AC inputs, making it suitable for global markets.
Superior Heat Dissipation: Ensures long lifespan and stable performance even under demanding conditions.
Easy Installation: Quick and simple setup with minimal components required.

Applications:

Indoor Lighting: Ideal for downlights, panel lights, and spotlights in homes and commercial spaces.
Outdoor Lighting: Suitable for high bay lights, floodlights, and streetlights due to its robust design and high efficiency.
Retrofit Projects: A perfect fit for upgrading existing lighting fixtures without extensive modification.
Industrial & Commercial Lighting: High-efficiency illumination for factories, warehouses, and offices.

Explanation About Our LED Module Model Numbers:

**	**	*	***	**	*	*	*	*
Heat Sink Spec.	LED Qty.	Lens Type	Lighting Distribution	Color Temperature	LEDs' Type	LEDs' Brand or Bin	Color Rendering Index (Ra)	Cable Spec.
				18: 1800K;
	128				2: 2525;	F: FH;
	96			22: 2200K;
GS: 298 x 70 x 48mm;	72	L: Srew Type;	HL2: Horizontal 70° x 145°;	24: 2400K;	3: 3030;	2: 24-J2;
GH: 298 x 70 x 40mm;	64
GP: 300 x 70 x 31mm;	63		SL2: Vertical 70° x 145°;		5: 5050;	0: 02-J2;
GD: 275 x 70 x 40mm;			HL3: Horizontal 80° x 150°;	27: 2700K;
GJ: 300 x 70 x 35mm;	60	K: One-piece Clip Design;	SL3: Vertical 80° x 150°;		6: 3535;	1: 18-J2;
SH: 250 x 70 x 50mm;	56		HS9: Horizontal 90° x 120°;	30: 3000K;			7: >70;	C: CSA M15;
JD: 168 x 130 x 26mm;	54	F: Split Clip Design;	HS1: Horizontal 90° x 110°;			Y: Refond;
JX: 168 x 100 x 26mm;	48		HG4: Horizontal 45° x 135°;	35: 3500K;	R: 5050RGB;
	42		QC3: Sports 35° x 125°;				8: >80;	M: M18;
YL10W: φ76 x 70mm;	40	G: Glass Lens;	HLM: Horizontal 70° x 150°;	40: 4000K;	G: 3030RGB;	P: Philips;
YL20W: φ100 x 62mm;	36		OT3: Flood 30°;				9: >90;	L: Open Cable or Customized Length
YL30W: φ100 x 70mm;	32	W: Universal Combination Lens	OT6: Flood 60°;	50: 5000K;	W: 3030RGBW;	S: SAMSUNG;
YL60W: φ136 x 75mm;	30		OT9: Flood 90°;
	28		O25: Flood 25°;	57: 5700K;	U: UV;	C: CREE;
	18		T2M: T2M
	15					R: bridgelux;
	14			60: 6000K;	P: Plant Lighting
	12			65: 6500K		J: Jingrui

For example:

Model NO.

GH30KHL3-305Y7-C

It means:

GH: Heat sink is 298 x 70 x 40mm;

30: There are total 30 units of LEDs;

K: Lens type is one-piece clip design;

HL3: Beam angle is horizontal 80° x 150°;

30: CCT is 3000K;

5: LEDs' type is SMD5050;

Y: Brand of LEDs is Refond;

7: CRI > 70;

-C: With standard M15 waterproof connector.
