Features:

• Input Over Voltage Protection at 440Vac with 48 Hours
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with Potentiometer
• Non-dimming Control
• Input Surge Protection: DM 4kV, CM 6kV
• All-Around Protection: IOVP, OVP, SCP, OTP
• IP66/IP67
• 5 Years Warranty

Description:

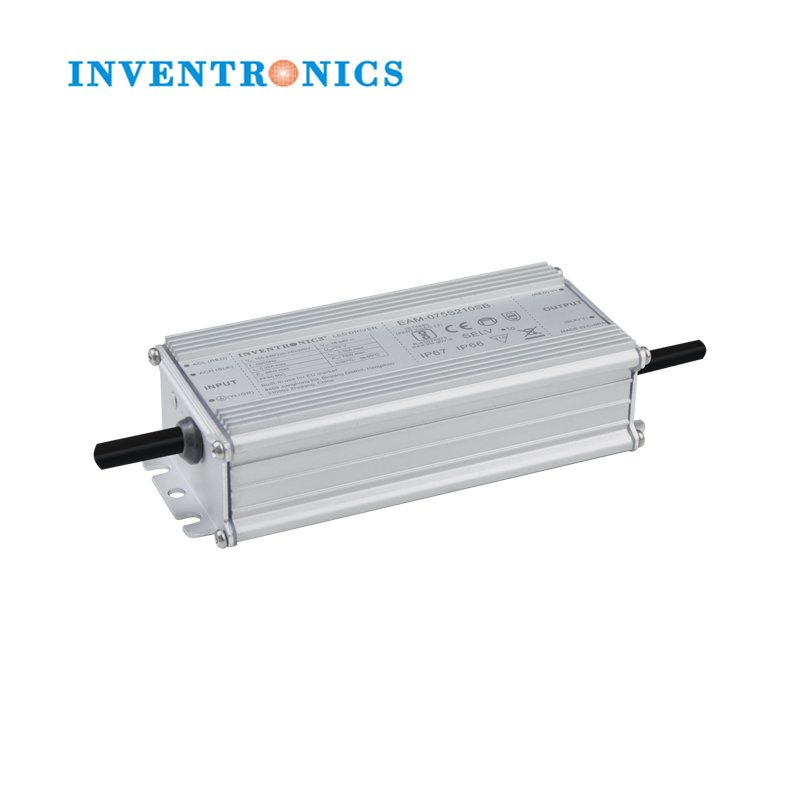

The EAM-075SxxxSB series is a 75W, constant-current, AOC LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, tunnel and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input over voltage, output over voltage, short circuit, and over temperature.
