Descriptions:

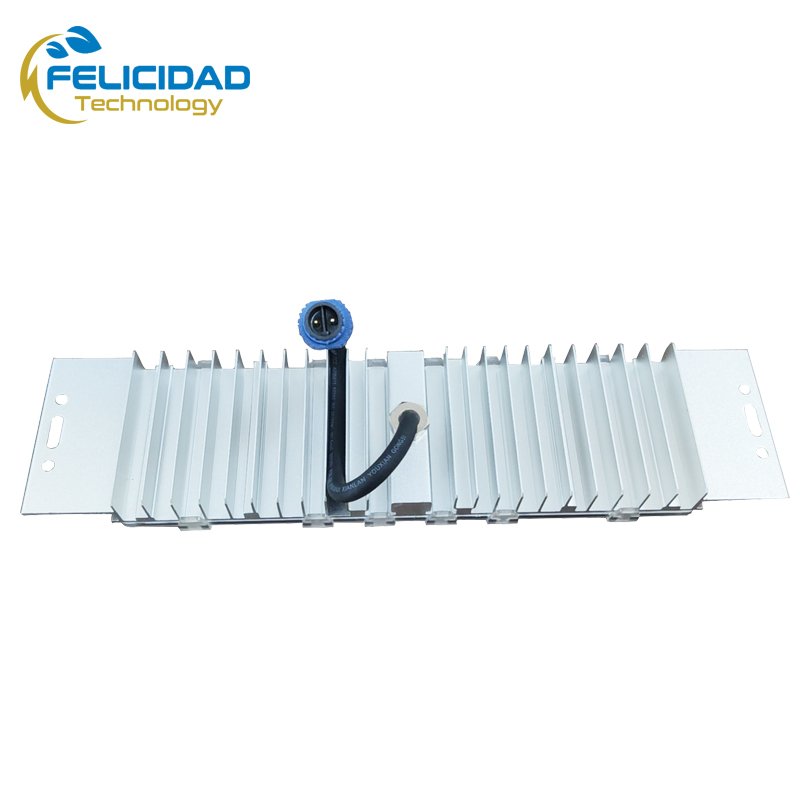

The AC Input DOB (Driver on Board) 50W Rectangle LED Grow Light Module offers a simplified yet powerful solution for professional horticulture and indoor farming. Unlike traditional grow lights that require external drivers, this module features Driver on Board (DOB) technology, which allows it to be connected directly to AC 110-130V or 180-240V power supplies, significantly reducing system complexity and installation time. The customizable light spectrum, which includes Deep Red, Far Red, and Royal Blue LEDs, is scientifically proven to enhance photosynthesis and improve plant health, making this grow light module perfect for commercial greenhouses, indoor farms, and hobbyist growers alike.
This module is designed to replace traditional grow light bars and features a cost-effective 31mm heat sink for excellent thermal management. Additionally, the IP68 waterproof rating ensures that the module can withstand humid and moisture-heavy environments, guaranteeing long-lasting performance. Whether used in large commercial setups or smaller home grow operations, this 50W LED grow light module offers superior performance, minimal maintenance, and easy integration into existing systems.
Specifications:
| Materials: |
Aluminum alloy + PC |
| Output Power Wattage: |
20W, 30W, 40W, 50W optional |
| Input Voltage Range: |
AC 110V to 130V (110V 120V), OR AC 180V to 240V (220V 230V) |
| Light Source: |
SMD 3030 |
| Quantity of LEDs: |
64 units |
| Luminous Efficiency: |
120lm/W @ 50W (ever higher at lower wattage) |
| Luminous Flux: |
Up to 6,000 lumens |
| IP Class: |
IP67 OR IP68 |
| Color Temperature: |
2700K/ 3000K/ 4000K/ 5000K/ 5700K/ 6500K optional |
| Color Rendering Index (Ra): |
≥70, ≥80, OR ≥90 |
| Beam Angles (Lighting Distribution): |
Horizontal 80°*150°/ 75°*145° |
| Applications: |
Street Lighting/ Tunnel Lighting/ High Bay or Low Bay Lighting/ Sports Lighting/ Other |
| Warranty: |
2 years |
| Dimensions: |
298 x 70 x 47mm |
| Net Weight: |
650g ± 10g |
| Packing: |
10pcs per tray, 2 trays per carton (20pcs per carton) |
| Carton Size & G.W.: |
65 x 38 x 19 cm, 14.5kgs |
| HS Code: |
9405429000 |
Advantages:
- No External Driver Needed: With DOB technology, the module simplifies installation and system setup, reducing labor and overall costs.
- Superior Heat Management: The 31mm heat sink is an economic yet efficient solution for thermal regulation, ensuring safe operation while keeping costs down.
- Energy Efficiency: High luminous efficiency combined with direct AC input ensures that energy consumption is minimized, reducing electricity bills.
- Durability: The IP68 rating protects the module from water, dust, and environmental stresses, making it ideal for harsh growing environments.
- Customizable for Optimal Growth: The customizable spectrum ensures that the lighting conditions are tailored to the specific plant species being cultivated, promoting better growth and higher yields.
- Compatibility with Existing Systems: The standard rectangular size allows it to easily replace traditional grow light bars, making upgrades simple and hassle-free.
- Long-Lasting Performance: With over 50,000 hours of expected life, this module ensures long-term reliability, reducing the frequency of replacements.
Applications:
- Commercial Greenhouses: Provides an ideal lighting solution for large-scale commercial greenhouse setups.
- Indoor Farming: Perfect for vertical farms or hydroponic systems, where space and energy efficiency are critical.
- Grow Light Bar Replacement: The standard rectangular shape allows for easy replacement of existing grow light bars without requiring extensive retrofitting.
- Hobbyist Growers: Simplified installation and cost-effective design make this module ideal for smaller-scale growers looking to improve their grow light systems.
- Global Use: The module’s wide AC input range (110-130V or 180-240V) makes it suitable for agricultural systems across different regions.
Explanation About Our LED Module Model Numbers:
| ** |
** |
* |
*** |
** |
* |
* |
* |
* |
| Heat Sink Spec. |
LED Qty. |
Lens Type |
Lighting Distribution |
Color Temperature |
LEDs' Type |
LEDs' Brand or Bin |
Color Rendering Index (Ra) |
Cable Spec. |
| |
|
|
|
18: 1800K; |
|
|
|
|
| |
128 |
|
|
|
2: 2525; |
F: FH; |
|
|
| |
96 |
|
|
22: 2200K; |
|
|
|
|
| GS: 298 x 70 x 48mm; |
72 |
L: Srew Type; |
HL2: Horizontal 70° x 145°; |
24: 2400K; |
3: 3030; |
2: 24-J2; |
|
|
| GH: 298 x 70 x 40mm; |
64 |
|
|
|
|
|
|
|
| GP: 300 x 70 x 31mm; |
63 |
|
SL2: Vertical 70° x 145°; |
|
5: 5050; |
0: 02-J2; |
|
|
| GD: 275 x 70 x 40mm; |
|
|
HL3: Horizontal 80° x 150°; |
27: 2700K; |
|
|
|
|
| GJ: 300 x 70 x 35mm; |
60 |
K: One-piece Clip Design; |
SL3: Vertical 80° x 150°; |
|
6: 3535; |
1: 18-J2; |
|
|
| SH: 250 x 70 x 50mm; |
56 |
|
HS9: Horizontal 90° x 120°; |
30: 3000K; |
|
|
7: >70; |
C: CSA M15; |
| JD: 168 x 130 x 26mm; |
54 |
F: Split Clip Design; |
HS1: Horizontal 90° x 110°; |
|
|
Y: Refond; |
|
|
| JX: 168 x 100 x 26mm; |
48 |
|
HG4: Horizontal 45° x 135°; |
35: 3500K; |
R: 5050RGB; |
|
|
|
| |
42 |
|
QC3: Sports 35° x 125°; |
|
|
|
8: >80; |
M: M18; |
| YL10W: φ76 x 70mm; |
40 |
G: Glass Lens; |
HLM: Horizontal 70° x 150°; |
40: 4000K; |
G: 3030RGB; |
P: Philips; |
|
|
| YL20W: φ100 x 62mm; |
36 |
|
OT3: Flood 30°; |
|
|
|
9: >90; |
L: Open Cable or Customized Length |
| YL30W: φ100 x 70mm; |
32 |
W: Universal Combination Lens |
OT6: Flood 60°; |
50: 5000K; |
W: 3030RGBW; |
S: SAMSUNG; |
|
|
| YL60W: φ136 x 75mm; |
30 |
|
OT9: Flood 90°; |
|
|
|
|
|
| |
28 |
|
O25: Flood 25°; |
57: 5700K; |
U: UV; |
C: CREE; |
|
|
| |
18 |
|
T2M: T2M |
|
|
|
|
|
| |
15 |
|
|
|
|
R: bridgelux; |
|
|
| |
14 |
|
|
60: 6000K; |
P: Plant Lighting |
|
|
|
| |
12 |
|
|
65: 6500K |
|
J: Jingrui |
|
|
For example:
Model NO.
GH30KHL3-305Y7-C
It means:
GH: Heat sink is 298 x 70 x 40mm;
30: There are total 30 units of LEDs;
K: Lens type is one-piece clip design;
HL3: Beam angle is horizontal 80° x 150°;
30: CCT is 3000K;
5: LEDs' type is SMD5050;
Y: Brand of LEDs is Refond;
7: CRI > 70;
-C: With standard M15 waterproof connector.
