Descriptions:

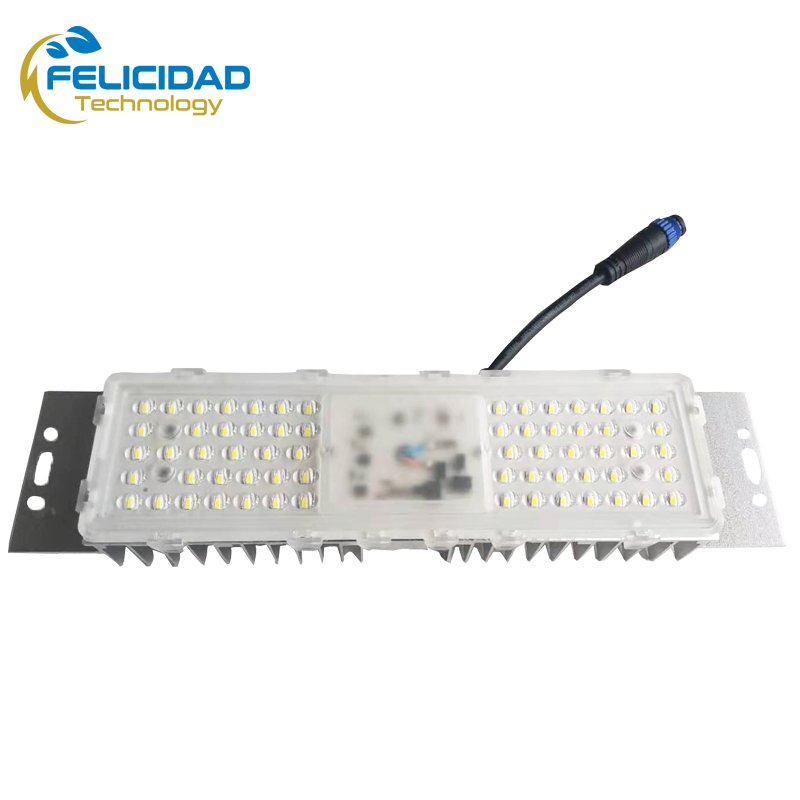

Upgrade your outdoor lighting projects with our AC Input Driverless (DOB) LED Light Engine Modules. These high-performance LED light engines offer direct AC input (110-130V or 180-240V) without the need for external LED drivers, simplifying installation and lowering costs. Ideal for street lights, garden lamps, and lantern retrofits, our modules deliver up to 120lm/W with 64 high-efficiency SMD3030 LEDs. The IP67 or IP68 waterproof design ensures long-lasting durability in all weather conditions, while the M15 waterproof connectors provide secure, weatherproof connections. Available in power options from 20W to 50W, these driverless LED modules are perfect for a range of outdoor applications. Easy installation, tool-free assembly, and Driver On Board (DOB) technology make retrofitting existing systems a breeze. Customizable through OEM & ODM services, our AC input LED modules offer the flexibility and performance you need for your next lighting project.
Specifications:
| Materials: |
Aluminum alloy + PC |
| Output Power Wattage: |
20W, 30W, 40W, 50W optional |
| Input Voltage Range: |
AC 110V to 130V (110V 120V), OR AC 180V to 240V (220V 230V) |
| Light Source: |
SMD 3030 |
| Quantity of LEDs: |
64 units |
| Luminous Efficiency: |
120lm/W @ 50W (ever higher at lower wattage) |
| Luminous Flux: |
Up to 6,000 lumens |
| IP Class: |
IP67 OR IP68 |
| Color Temperature: |
2700K/ 3000K/ 4000K/ 5000K/ 5700K/ 6500K optional |
| Color Rendering Index (Ra): |
≥70, ≥80, OR ≥90 |
| Beam Angles (Lighting Distribution): |
Horizontal 80°*150°/ 75°*145° |
| Applications: |
Street Lighting/ Tunnel Lighting/ High Bay or Low Bay Lighting/ Sports Lighting/ Other |
| Warranty: |
2 years |
| Dimensions: |
298 x 70 x 47mm |
| Net Weight: |
650g ± 10g |
| Packing: |
10pcs per tray, 2 trays per carton (20pcs per carton) |
| Carton Size & G.W.: |
65 x 38 x 19 cm, 14.5kgs |
| HS Code: |
9405429000 |
Explanation About Our LED Module Model Numbers:
| ** |
** |
* |
*** |
** |
* |
* |
* |
* |
| Heat Sink Spec. |
LED Qty. |
Lens Type |
Lighting Distribution |
Color Temperature |
LEDs' Type |
LEDs' Brand or Bin |
Color Rendering Index (Ra) |
Cable Spec. |
| |
|
|
|
18: 1800K; |
|
|
|
|
| |
128 |
|
|
|
2: 2525; |
F: FH; |
|
|
| |
96 |
|
|
22: 2200K; |
|
|
|
|
| GS: 298 x 70 x 48mm; |
72 |
L: Srew Type; |
HL2: Horizontal 70° x 145°; |
24: 2400K; |
3: 3030; |
2: 24-J2; |
|
|
| GH: 298 x 70 x 40mm; |
64 |
|
|
|
|
|
|
|
| GP: 300 x 70 x 31mm; |
63 |
|
SL2: Vertical 70° x 145°; |
|
5: 5050; |
0: 02-J2; |
|
|
| GD: 275 x 70 x 40mm; |
|
|
HL3: Horizontal 80° x 150°; |
27: 2700K; |
|
|
|
|
| GJ: 300 x 70 x 35mm; |
60 |
K: One-piece Clip Design; |
SL3: Vertical 80° x 150°; |
|
6: 3535; |
1: 18-J2; |
|
|
| SH: 250 x 70 x 50mm; |
56 |
|
HS9: Horizontal 90° x 120°; |
30: 3000K; |
|
|
7: >70; |
C: CSA M15; |
| JD: 168 x 130 x 26mm; |
54 |
F: Split Clip Design; |
HS1: Horizontal 90° x 110°; |
|
|
Y: Refond; |
|
|
| JX: 168 x 100 x 26mm; |
48 |
|
HG4: Horizontal 45° x 135°; |
35: 3500K; |
R: 5050RGB; |
|
|
|
| |
42 |
|
QC3: Sports 35° x 125°; |
|
|
|
8: >80; |
M: M18; |
| YL10W: φ76 x 70mm; |
40 |
G: Glass Lens; |
HLM: Horizontal 70° x 150°; |
40: 4000K; |
G: 3030RGB; |
P: Philips; |
|
|
| YL20W: φ100 x 62mm; |
36 |
|
OT3: Flood 30°; |
|
|
|
9: >90; |
L: Open Cable or Customized Length |
| YL30W: φ100 x 70mm; |
32 |
W: Universal Combination Lens |
OT6: Flood 60°; |
50: 5000K; |
W: 3030RGBW; |
S: SAMSUNG; |
|
|
| YL60W: φ136 x 75mm; |
30 |
|
OT9: Flood 90°; |
|
|
|
|
|
| |
28 |
|
O25: Flood 25°; |
57: 5700K; |
U: UV; |
C: CREE; |
|
|
| |
18 |
|
T2M: T2M |
|
|
|
|
|
| |
15 |
|
|
|
|
R: bridgelux; |
|
|
| |
14 |
|
|
60: 6000K; |
P: Plant Lighting |
|
|
|
| |
12 |
|
|
65: 6500K |
|
J: Jingrui |
|
|
For example:
Model NO.
GH30KHL3-305Y7-C
It means:
GH: Heat sink is 298 x 70 x 40mm;
30: There are total 30 units of LEDs;
K: Lens type is one-piece clip design;
HL3: Beam angle is horizontal 80° x 150°;
30: CCT is 3000K;
5: LEDs' type is SMD5050;
Y: Brand of LEDs is Refond;
7: CRI > 70;
-C: With standard M15 waterproof connector.
